ACE AIR

ACE AIR series is designed to provide AV integrators with flexibility and adaptability for fixed installations. With its ultra-slim and lightweight design, flexible size options, easy full front maintenance, outstanding visual performance, and versatile mounting options, ACE AIR facilitates imaginative and extraordinary designs in various application scenarios.

Download brochure

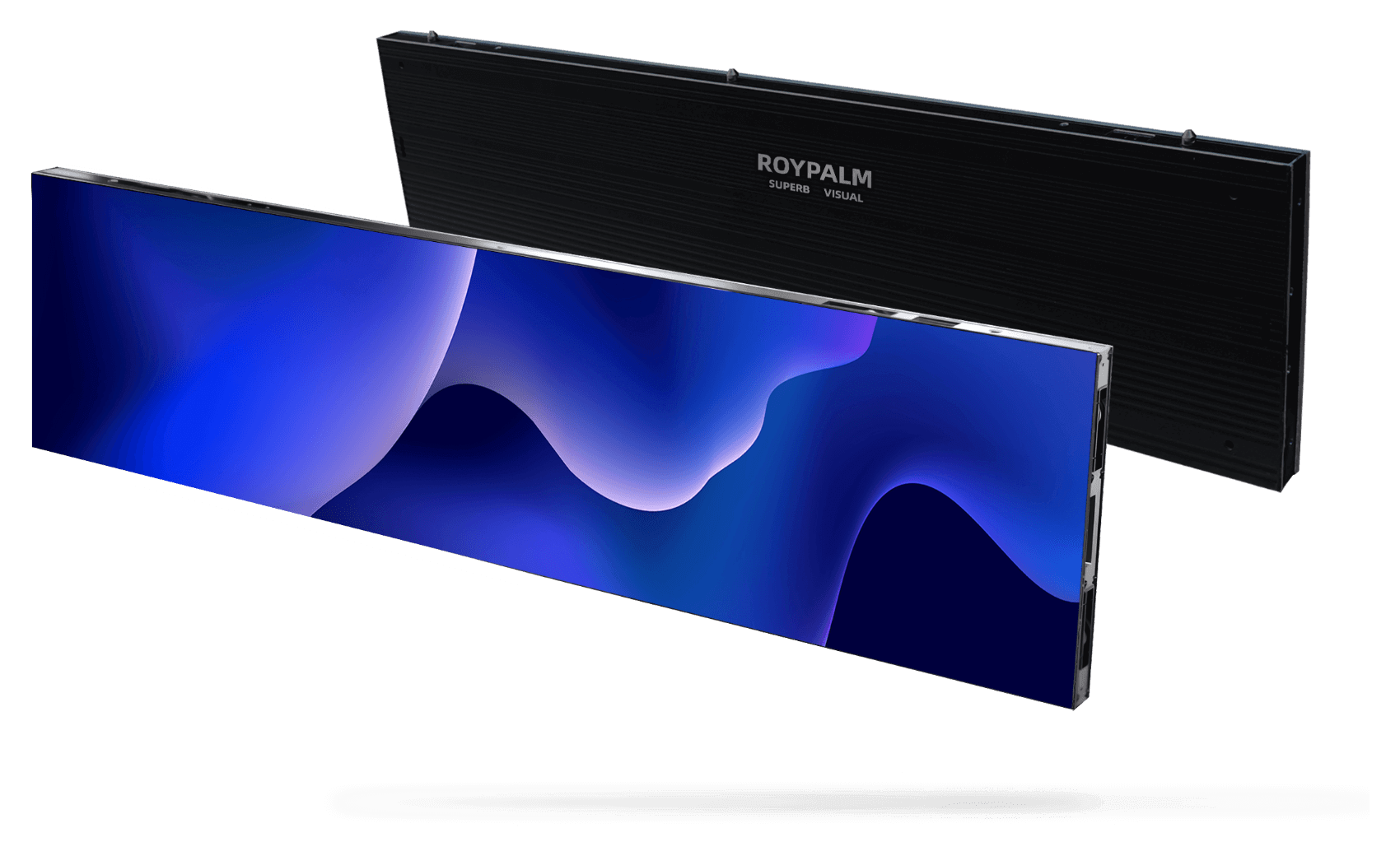

Ultra Slim and Light Design

ACE AIR boasts an ultra-slim and lightweight design. The slim profile adds a sleek and elegant aesthetic to the display, while the lightweight construction makes it easier to handle and install. This design ensures a visually appealing installation without compromising on structural requirements.

Flexible Size for Various Application Scenarios

The ACE AIR series offers flexible size options that are suitable for a wide range of application scenarios. Whether it's an auditorium, showroom, retail space, airport, or church, the ACE AIR displays can be customized to fit the specific requirements of the environment. This adaptability allows for seamless integration into different spaces.

Easy Full Front Maintenance

ACE AIR is designed with easy full front maintenance in mind. This means that maintenance tasks can be performed from the front of the display, eliminating the need for rear access. This feature simplifies maintenance procedures, reduces downtime, and ensures efficient servicing without disrupting the overall installation.

Outstanding Visual Performance

ACE AIR delivers outstanding visual performance with its high-quality display capabilities. It offers vibrant colors, excellent contrast ratios, and sharp image clarity, resulting in a stunning visual display. Whether showcasing graphics, videos, or text, ACE AIR provides an immersive and engaging visual experience.

Versatile Mounting Options

ACE AIR supports multiple mounting options, including wall-mounted, hanging, and cube shape. This flexibility allows AV integrators to choose the most suitable installation method based on the specific requirements of the environment. Whether it's mounting the displays on a wall, hanging them from a ceiling, or cube shape, ACE AIR accommodates various installation needs.

Specifications

1.56 / 1.95 / 2.5 / 2.9 / 3.91

Titie	1.56	1.95	2.5	2.9	3.91
Pixel Pitch	1.56mm	1.95mm	2.5mm	2.9mm	3.91mm
LED Configuration	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020
Max Brightness Calibrated	1000nits	1000nits	1000nits	1000nits	1000nits
Panel Dimension	1000mm x 250mm x 33mm 700mm x 250mm x 33mm 500mm x 250mm x 33mm	1000mm x 250mm x 33mm 700mm x 250mm x 33mm 500mm x 250mm x 33mm	1000mm x 250mm x 33mm 700mm x 250mm x 33mm 500mm x 250mm x 33mm	1000mm x 250mm x 33mm 700mm x 250mm x 33mm 500mm x 250mm x 33mm	1000mm x 250mm x 33mm 700mm x 250mm x 33mm 500mm x 250mm x 33mm
Panel Resolution (H x V)	640 x 160 / 480 x 160 / 320 x 160	512 x 128 / 384 x 128 / 256 x 128	400 x 100 / 300 x 100 / 200 x 100	336 x 84 / 252 x 84 / 168 x 84	256 x 64 / 192 x 64 / 128 x 64
Weight Per Panel	5.8kg / 4.4kg / 2.9kg	5.8kg / 4.4kg / 2.9kg	5.8kg / 4.4kg / 2.9kg	5.8kg / 4.4kg / 2.9kg	5.8kg / 4.4kg / 2.9kg
Power Consumption Max / Average w/m²	800W / 200W	800W / 200W	800W / 200W	800W / 200W	800W / 200W
Transparency	Solid	Solid	Solid	Solid	Solid
Serviceability	Front	Front	Front	Front	Front
Viewing Angle Vertical	160°	160°	160°	160°	160°
Viewing Angle Horizontal	160°	160°	160°	160°	160°
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Gray Scale	16bit	16bit	16bit	16bit	16bit
Frame Material	Die-casting	Die-casting	Die-casting	Die-casting	Die-casting
Operational Temp / Humidity	-20°~ 60°C, 10~90%	-20°~ 60°C, 10~90%	-20°~ 60°C, 10~90%	-20°~ 60°C, 10~90%	-20°~ 60°C, 10~90%
IP Rating	Indoor	Indoor	Indoor	Indoor	Indoor
Certifications	CE, RoHS, FCC	CE, RoHS, FCC	CE, RoHS, FCC	CE, RoHS, FCC	CE, RoHS, FCC
